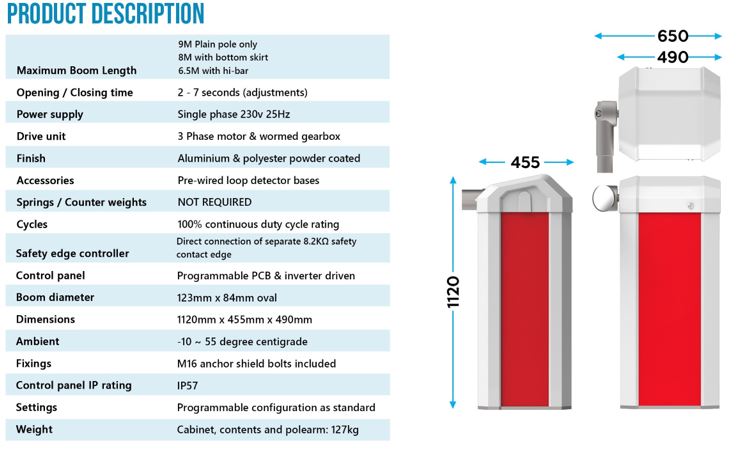

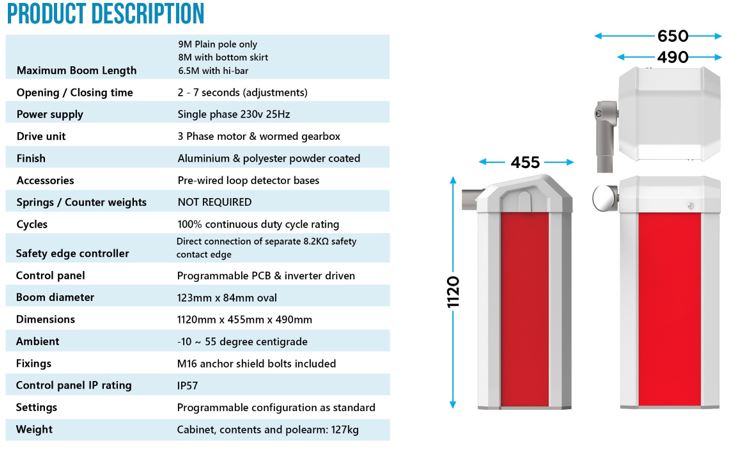

Description

  • Aluminium extruded cabinet corners
  • Removable access doors on 3 sides
  • 100% continuous duty cycle
  • Single phase supply, 3 phase motor
  • Two stage motor drive
  • Inverter driven
  • Adjustable acceleration and deceleration
  • No springs or counterweights required
  • Pre-wired loop detector bases for single
  • Channel safety and entry/exit control
  • Heavy duty roller plunger limit switches
  • Programmable control panel
  • c/w fault diagnostic on screen display
  • Built in 8.20 safety edge controller
  • Manual override in case of power failure
  • Comes complete with M16 anchor bolts
  • Heavy duty pillar block bearings



XHD ADDED BENEFITS

  • Coloured safety sensing edges
  • LED strip boom lights
  • Powerful turnbuckle drive
  • Colours available on request
  • Low maintenance
  • Ease of installation

OPTIONAL EXTRAS

  • Pogo tip support
  • Magnetic lock
  • Lorry Height Stop/ No Entry signs
  • Articulated arm (low ceilings)
  • Folding bottom skirt up to 8M
  • Hi-bar skirt up to 6,5M
  • Plain pole up to 9M
